N9 X870E

3.0
Rated 3.0 out of 5 stars
3.0 Stars (2 Reviews)

AMD® X870E ATX Gaming Wi-Fi 7 Mainboard mit Shroud & RGB

Angebot$479.99 Regulärer Preis$499.99
Spare $20
Color:White
Notify Me

N9 X870E Übersicht

Der N9 X870E bietet Spitzenleistung in einem eleganten Design und ist damit eine ideale Grundlage für moderne AMD® Gaming-PCs. Entwickelt für die neuesten AMD® Ryzen™ Prozessoren, verfügt er über übertaktungsbereite Leistung, optimierte Thermik und PCIe 5.0 Unterstützung sowie Hochgeschwindigkeits-Wi-Fi 7, 5GbE und USB 4 Konnektivität. Die Vollmetallabdeckung mit subtiler RGB-Beleuchtung verleiht jedem Aufbau einen Hauch von Raffinesse.

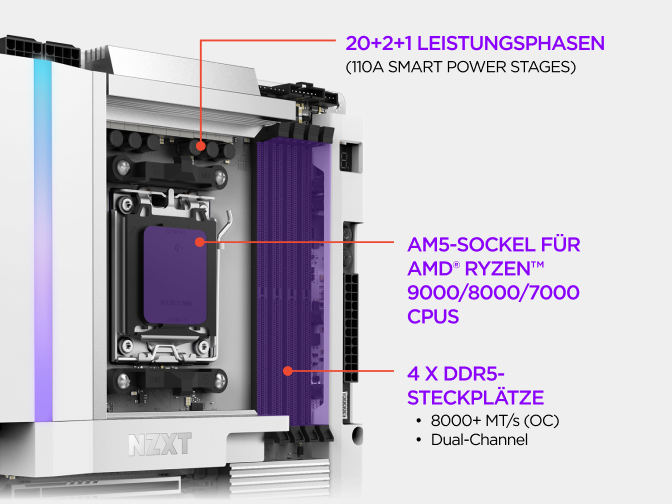

  • AMD® AM5-Sockel: Bereit für AMD® Ryzen™ 9000-, 8000- und 7000-Serien-Desktop-Prozessoren.
  • Überlegene Leistung: Ein robustes 20+2+1-Phasen-Design mit 110A SPS und einer 8-lagigen, verlustarmen 2-Unzen-Kupferplatine sorgt für außergewöhnliche Stabilität und Übertaktungspotenzial.

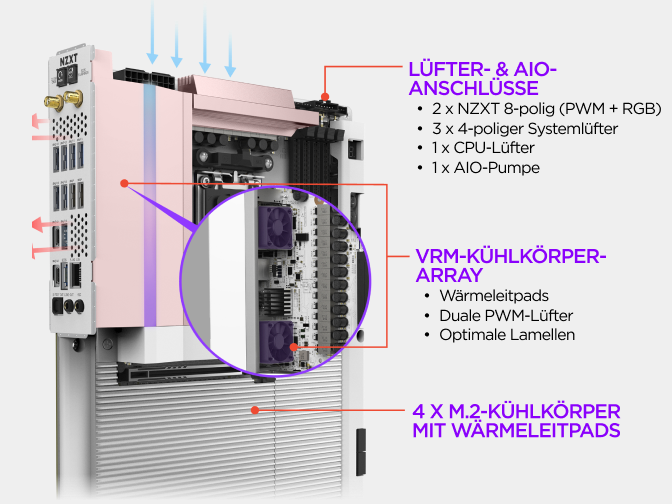

  • Fortschrittliche Kühlung: Bleiben Sie cool unter Druck mit einem VRM-Kühlkörper-Array mit Wärmeleitpads, zwei PWM-Lüftern und Lamellen sowie dedizierten Kühlkörpern und Wärmeleitpads für alle M.2-Steckplätze.
  • PCIe® 5.0-Erweiterung: Ein PCIe® 5.0 x16-Steckplatz für Next-Gen-GPUs und ein PCIe® 3.0 x16-Steckplatz für zusätzliche Hochgeschwindigkeits-Erweiterungskarten.
  • DDR5-Speicher: Vier Dual-Channel-DIMM-Steckplätze unterstützen DDR5-RAM-Geschwindigkeiten von 8000+ MT/s und bieten schnelleres Multitasking und verbesserte Systemreaktionsfähigkeit.

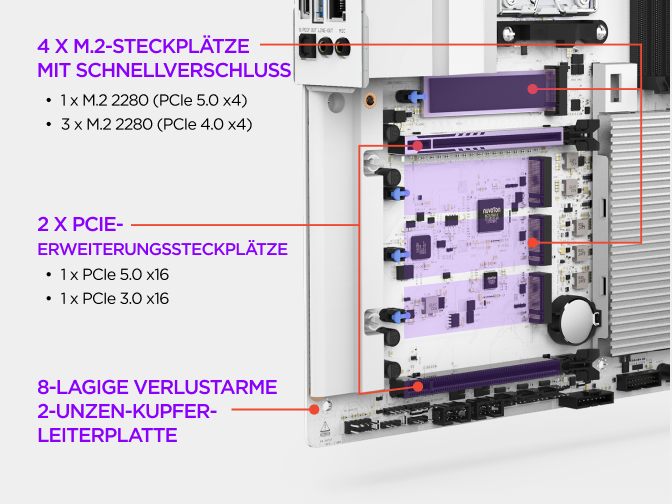

  • Hochgeschwindigkeits-Speicher: Vier M.2-Steckplätze, darunter ein PCIe® 5.0 und drei PCIe® 4.0, bieten ultraschnelle Speicher- und Ladezeiten – alle mit Schnellverschluss.
  • Next-Gen-Konnektivität: USB 4 (40 Gbps), Wi-Fi 7 und 5GbE bieten blitzschnelle Datenübertragungen und ultra-niedrige Latenzzeiten im Netzwerk.

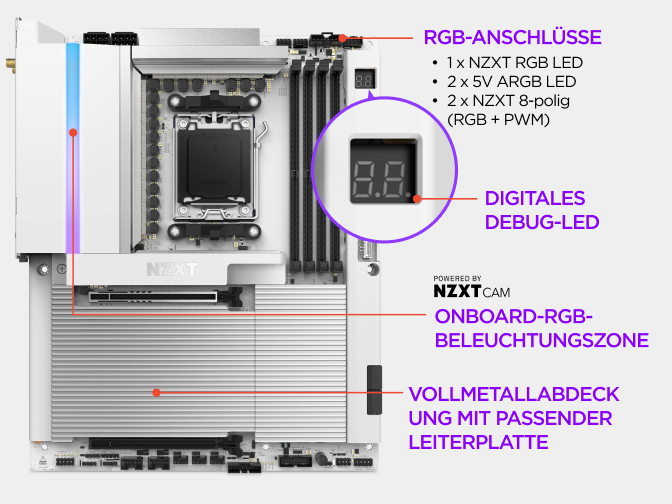

  • Schlank & Stilvoll: Eine hochwertige Vollmetallabdeckung verbirgt die Platine für eine saubere, moderne Ästhetik, ergänzt durch anpassbare RGB-Beleuchtung an Bord.

WICHTIG: BIOS- und Treiber-Updates erforderlich

Aktualisieren Sie Ihr BIOS und Ihre Treiber für Kompatibilität, Stabilität und Spitzenleistung.

  • BIOS: Version 3.20 oder höher ist erforderlich für den AMD® Ryzen™ 7 9800X3D. Während Ihr System startet, aktualisieren Sie sofort, um speicherbezogene Probleme zu vermeiden. Sie können Ihre BIOS-Version in NZXT CAM überprüfen.
  • Treiber: Halten Sie Ihre Chipsatz- und Systemtreiber auf dem neuesten Stand für optimale Leistung und Stabilität.

Die neuesten BIOS und Treiber finden Sie am Ende dieser Seite, unter den FAQs. Brauchen Sie Hilfe? Der NZXT-Support ist für Sie da!

Technische Daten
CPU
CPU
AMD Sockel AM5 für AMD® Ryzen™ 9000, 8000 und 7000 Serien Prozessoren
Chipsatz
Chipsatz
AMD® X870E
Speicher
DIMM-Steckplätze
4 × DDR5 nur
Speicherarchitektur
Dual-Channel
Extreme Memory Profile (XMP)
Unterstützt
EXTended Profiles for Overclocking (EXPO)
Unterstützt
OC-Frequenz
Siehe Memory QVL auf NZXT.com für Details
Erweiterungs-Slots
PCIe 5.0 ×16 Slot (PCIEX16_1)
1
PCIe 3.0 ×16 Slot (PCIEX16_2)
1 (×2 Modus)
M.2 Socket (Key E)
1 (Typ 2230 Wi-Fi/BT PCIe Modul)
Speicheranschlüsse
M.2_1
Typ 2280 (PCIe 5.0 ×4 Modus)
M.2_2
Typ 2280 (PCIe 4.0 ×4 Modus)
M.2_3
Typ 2280 (PCIe 4.0 ×4 Modus)
M.2_4
Typ 2280 (PCIe 4.0 ×4 Modus)
SATA 6 Gb/s Ports
4
LAN
LAN
Realtek® 5.0G LAN
Drahtlos
Tri-Band Wi-Fi 7
Unterstützt
Bluetooth
v5.4
Audio
Audio
Realtek® ALC4082 Audio-Codec

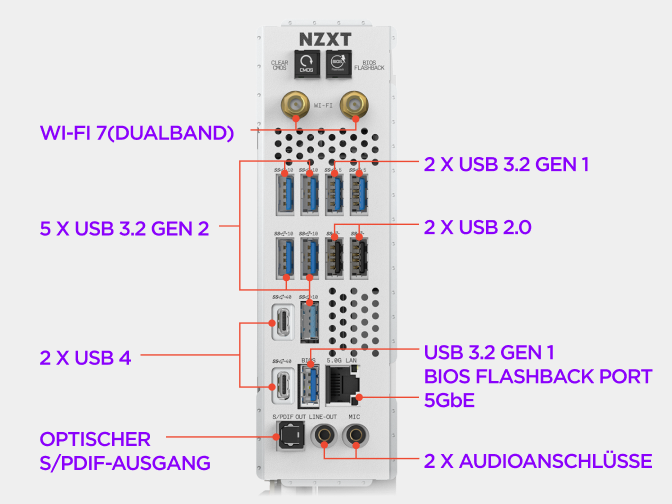

Rückseite I/O
SMA Antennenanschlüsse
2
USB 4 Ports
2
USB 3.2 Gen 2 Ports
5
USB 3.2 Gen 1 Type-A Ports
3
USB 2.0 Port
2
Clear CMOS Button
1
LAN (RJ45) Port
1
Audio-Buchsen
2
Optical S/PDIF Out
1
Interne I/O
24-Pin ATX Stromanschluss
1
8-Pin ATX 12V Stromanschluss
2
4-Pin CPU_FAN Anschluss
1
4-Pin AIO_PUMP Anschluss
1
4-Pin SYS_FAN Anschlüsse
3
NZXT RGB LED Anschluss
1
5V ARGB LED Anschlüsse
2
NZXT 8-Pin PWM Anschlüsse
2
USB 2.0 Header
2 (bis zu 4 Ports)
USB 3.2 Gen 1 Header
2 (bis zu 4 Ports)
USB 3.2 Gen 2×2 Front-Header
1
Frontpanel Audio Anschluss
1
Power Button
1
Reset Button
1
Post LEDs
1
Digital Debug LED
1
Allgemein
Betriebssystem
Windows® 11/10 64-Bit
Formfaktor
ATX
Garantie
3 Jahre
Modellnummer
N9-X87XT-W1 (Weiß) / N9-X87XT-B1 (Schwarz)
UPC
810074847292 (Weiß) / 810074847308 (Schwarz)
EAN
5056547207254 (Weiß) / 5056547207261 (Schwarz)
3.0
Rated 3.0 out of 5 stars
Based on 2 reviews
50%would recommend this product
Total 5 star reviews: 0 Total 4 star reviews: 1 Total 3 star reviews: 0 Total 2 star reviews: 1 Total 1 star reviews: 0
2 reviews
  • R Profile picture for Ric
    Ric
    Verified Reviewer
    I recommend this product
    Rated 4 out of 5 stars
    Jul 11, 2025
    White Candy

    The board is beautiful. It fits the NZXT motif perfectly and adds a premium touch to other cases. It's pricey and misses on some niche features. For a consumer level board it does everything you would want on a everyday basis while looking good at it. The quality is top notch. The LED strip is cool and not over the top. This is an enthusiasts level item and you pay for that. If it fits your budget it's worth it. Just update the BIOS to the latest which is 3.30 at the time of this review. There are some issues with ASRock boards so update before installing CPU.

  • F
    Florian
    Verified Reviewer
    I do not recommend this product
    Rated 2 out of 5 stars
    Jun 18, 2025
    Beautiful but bad...

    At €499, the NZXT N9 X870E is a huge bummer. The absence of Thunderbolt, HDMI and DisplayPort ports is simply deplorable for a motherboard at this price, especially when compared to market standards. The BIOS is a disaster: slow startup, impossible updates, and general instability. The CAM software doesn't help, detecting the card one time out of five, making it nearly impossible to adjust the fans. The differences between the Intel and AMD versions are also frustrating and poorly justified. The only positive point: an elegant design, but that's not enough to save the day. I do not recommend, very disappointed with this purchase.

    At €499, the NZXT N9 X870E is a huge disappointment. The lack of Thunderbolt, HDMI, and DisplayPort is simply inferior for a motherboard at this price, especially when compared to market standards. The BIOS is abysmal: slow boot times, impossible to update, and generally unstable. The CAM software is equally problematic, detecting the board only one out of five times, making fan control nearly impossible. The differences between the Intel and AMD versions are also frustrating and poorly justified. The only positive point is its sleek design, but that's nowhere near enough to redeem it. I don't recommend this product—very disappointed with this purchase.

    Translated from French
