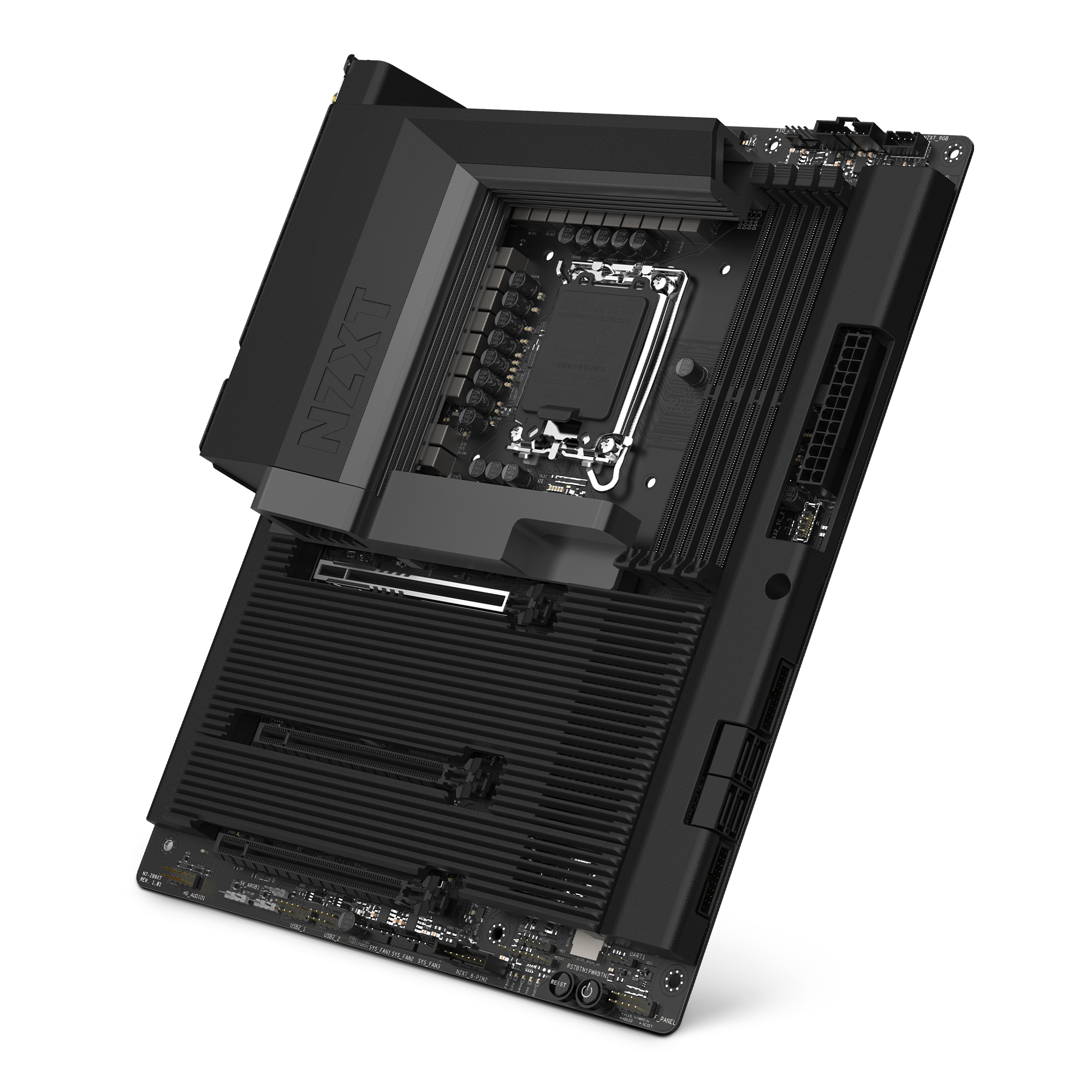

The NZXT N7 Z890 motherboard in black features a large heatsink, CPU socket, RAM slots, PCIe 5.0 support, and various ports for advanced gaming performance.
The NZXT N7 Z890 motherboard, shown from above on a white background, features a black design with a central CPU socket, four right-side RAM slots, PCIe 5.0 slots for gaming, multiple connectors, and integrated heatsinks.
The NZXT N7 Z890 is a black motherboard I/O panel with USB, HDMI, DisplayPort, Ethernet, audio jacks, Wi-Fi antenna connectors, and a PCIe 5.0 slot extension for advanced gaming performance.
A black NZXT N7 Z890 motherboard is displayed at an angle, showcasing its slots, PCIe 5.0 connectors, and metallic heatsinks for gaming performance, featuring a modern design with partially visible rear I/O ports.
The NZXT N7 Z890 is a black gaming PC with RGB lighting, liquid cooling, and a 32° liquid digital display. Powered by Intel Core Ultra processors, its components are neatly arranged inside a glass-sided case for advanced gaming performance.
Diagram of the NZXT N7 Z890 motherboard showing 16+1+2 power phases, LGA 1851 socket for Intel Core Ultra CPUs, 4 DDR5 DIMMs, 4 M.2 slots, PCIe 5.0 expansion, and “HIGH-SPEED POWER” at the bottom.
Close-up of the NZXT N7 Z890 motherboard showing its RL-ILM socket, VRM heatsink, several fan and AIO headers, and PCIe 5.0 NVMe SSD heatsink—engineered for top-tier gaming—with the caption Optimized Cooling at the bottom.
The NZXT N7 Z890 motherboard’s rear I/O panel features labeled HDMI, Thunderbolt 4, USB-C, optical out, Wi-Fi 6E, and Ethernet ports—engineered for advanced gaming with PCIe 5.0 and support for Intel Core Ultra processors.
The NZXT N7 Z890 motherboard, featuring labeled RGB headers and a full cover, sits beside a PC case with vibrant internal RGB lighting. Text highlights PCIe 5.0 support and multiple RGB header types, while “Sleek Design” appears at the bottom.
The NZXT N7 Z890 box includes: motherboard, 2 wireless antennas, 4 SATA cables, 2 NZXT 8-pin splitters, 4 M.2 screws, and a user manual. It supports PCIe 5.0 expansion for advanced gaming with Intel Core Ultra processors.
Six purple icons highlight the NZXT N7 Z890’s connectivity: Thunderbolt 4 (40Gbps), USB 3.2 Type-C (20Gbps), WiFi 6E, Realtek 2.5Gb Ethernet, ALC1220 Audio, and Bluetooth 5.3—perfect for PCIe 5.0 gaming. Text below: FAST CONNECTIVITY.
The NZXT N7 Z890 is a black and white motherboard featuring angular heatsinks, multiple RAM slots, PCIe 5.0 slots, and various connectors—engineered for high-performance desktop PCs and advanced gaming.
The NZXT N7 Z890 is a white motherboard with black and silver details, PCIe 5.0 slots, and support for Intel Core Ultra processors—perfect for advanced gaming—shown from above on a plain background.
The NZXT N7 Z890 is a vertical motherboard with PCIe 5.0, offering USB, HDMI, DisplayPort, Ethernet, audio jacks, and antenna connectors in a slim white design with black accents for advanced gaming performance.
The NZXT N7 Z890 is a white motherboard with PCIe 5.0 support for Intel Core Ultra CPUs, shown angled on a black background with an exposed CPU socket, multiple ports and slots, and large heatsinks.
The NZXT N7 Z890 is a white computer case with RGB lighting, liquid cooling, three illuminated fans, and a digital display showing 32°C. Its clean interior reveals tidy cables, motherboard, GPU, and supports PCIe 5.0 for advanced gaming.
A close-up diagram of the NZXT N7 Z890 motherboard highlights its 16+1+2 power phases, LGA 1851 socket for Intel Core Ultra, 4 DDR5 DIMM slots, 4 M.2 slots, Thunderbolt 4, and PCIe 5.0—showcasing high-speed power and performance.
The NZXT N7 Z890 motherboards rear I/O panel includes Thunderbolt 4, HDMI, PCIe 5.0 support, USB-C, USB 3.2, Ethernet, S/PDIF, Wi-Fi 6E, and audio jacks in a sleek white and silver design.
The NZXT N7 Z890 motherboard with labeled RGB headers, PCIe 5.0 support, and a full cover is shown beside an open case revealing a custom-built RGB-lit system. Text reads SLEEK DESIGN.
A labeled diagram of the NZXT N7 Z890 motherboard showing RL-ILM socket for Intel Core Ultra, VRM heatsink, fan & AIO headers, PCIe 5.0 NVMe SSD heatsink, Thunderbolt 4 ports; “Optimized Cooling” appears at the bottom.
The NZXT N7 Z890 box includes the motherboard (with PCIe 5.0), two wireless antennas, four SATA cables, two NZXT 8-pin splitters, four M.2 screws, and a user manual.
Six purple icons highlight the N7 Z890’s fast connectivity: Intel Core Ultra support, Thunderbolt 4, USB 3.2 Type-C (20Gbps), PCIe 5.0, WiFi 6E, 2.5Gb Ethernet, Realtek ALC1220 Audio & Bluetooth 5.3. Text: Fast Connectivity.

N7 Z890

Intel® Z890 ATX Gaming Wi-Fi-Mainboard mit Shroud

Angebot$349.99
Color:White
Notify Me

N7 Z890 Übersicht

Der N9 Z890 kombiniert Gaming-Leistung der nächsten Generation mit einem schlanken, modernen Design. Entwickelt für Intel® Core™ Ultra (Serie 2) Prozessoren, bietet er übertaktungsbereite Leistung, optimierte Thermik und modernste Konnektivität mit PCIe® 5.0, Wi-Fi 7, 5GbE und Thunderbolt™ 4. Eine Vollmetallabdeckung mit anpassbarer RGB-Beleuchtung verleiht jedem Aufbau eine raffinierte, persönliche Note.

  • Intel LGA 1851 Sockel: Bereit für Intel® Core™ Ultra (Serie 2) Prozessoren, mit einem RL-ILM-Design, das den thermischen Kontakt verbessert und den Montageaufwand reduziert.
  • Überlegene Leistung: Ein robustes 20+1+1-Phasendesign mit 10A SPS und einer 8-lagigen, verlustarmen 2-Unzen-Kupferplatine sorgt für außergewöhnliche Stabilität und Übertaktungspotenzial.
  • Fortschrittliche Kühlung: Bleiben Sie unter Druck kühl dank eines VRM-Kühlkörper-Arrays mit Finnenstapel, Heatpipe, Wärmeleitpads und zwei PWM-Lüftern sowie dedizierten Kühlkörpern für alle M.2-Steckplätze.
  • PCIe® 5.0-Erweiterung: Der PCIe 5.0 x16-Steckplatz bietet maximale Bandbreite für Next-Gen-GPUs, während ein PCIe 4.0-Steckplatz Hochgeschwindigkeits-Erweiterungen wie Capture-Karten unterstützt.
  • Hochgeschwindigkeits-Speicher: Ein PCIe 5.0 und vier PCIe 4.0 M.2-Steckplätze bieten ultraschnelle Speicher-Geschwindigkeiten für minimale Ladezeiten und maximale Effizienz.
  • DDR5-Speicher: Vier Dual-Channel-DIMM-Steckplätze unterstützen DDR5-RAM-Geschwindigkeiten von 8000+ MT/s und bieten schnelleres Multitasking und verbesserte Systemreaktionsfähigkeit.
  • Next-Gen-Konnektivität: Thunderbolt™ 4, Wi-Fi 7 (320 MHz) und 5GbE bieten blitzschnelle Datenübertragungen und ultra-niedrige Latenzzeiten im Netzwerk.
  • Schlank und stilvoll: Eine hochwertige Vollmetallabdeckung verbirgt die Platine für eine saubere, moderne Ästhetik, ergänzt durch anpassbare RGB-Beleuchtung an Bord.

WICHTIG: BIOS- und Treiber-Updates erforderlich

Aktualisieren Sie Ihr BIOS und Ihre Treiber für die beste Kompatibilität, Stabilität und Leistung.

  • BIOS: Stellen Sie sicher, dass Ihr Motherboard die neueste BIOS-Version für optimale Systemstabilität und Hardwarekompatibilität ausführt. Sie können Ihre BIOS-Version in NZXT CAM überprüfen.
  • Treiber: Halten Sie Ihre Chipsatz- und Systemtreiber auf dem neuesten Stand für maximale Leistung und Zuverlässigkeit.

Finden Sie die neuesten Updates unter den FAQs. Brauchen Sie Hilfe? Der NZXT-Support ist für Sie da!

Two NZXT computer motherboards, one black and one white, are displayed side by side against a blue and purple gradient background with icons and text indicating support for Intel, WiFi 6E, NZXT CAM, Thunderbolt, and DDR5.

Polished & Powerful

The N7 Z890 pairs advanced gaming performance with a sleek, refined design. Built for Intel® Core™ Ultra (Series 2) processors, it features robust power delivery, optimized thermals, and high-speed connectivity with Thunderbolt™ 4, DDR5, and PCIe 5.0. A full PCB cover enhances aesthetics, creating a clean and modern foundation for any build.
A close-up image of a computer motherboard with labeled components: Fan & AIO Headers, VRM Heatsink, RL-ILM Socket Design, and PCIe 5.0 NVMe SSD Heatsink.
A white NZXT motherboard with labels pointing to the RGB headers near the top right and full covers around the lower half, highlighting key motherboard features.
A white NZXT motherboard with labeled features: 16+1+2 power phases, LGA 1851 socket for Intel Core Ultra CPUs (Series 2), and 4 DDR5 slots, with purple accents highlighting the areas.
A partial view of a computer motherboard highlighting 4 M.2 slots, 3 PCIe slots, and a 6-layer low-loss 2-oz copper PCB, with each feature labeled and indicated by arrows.
Six purple squares display white icons and text: Thunderbolt 4 (40 Gbps), USB 3.2 Type-C (20 Gbps), WIFI 6E, Realtek 2.5Gb Ethernet, Realtek ALC 1220 Audio, and Bluetooth 5.3.
Rear I/O panel of an NZXT motherboard, labeled with ports: HDMI, Thunderbolt 4, USB 3.2 Gen 2x2 Type-C, S/PDIF out, Wi-Fi 6E, USB 3.2 Gen 2 Type-C, 2.5GbE LAN, USB 3.2 Gen 1 Type-A, and audio jacks.
Technische Daten
CPU & Sockel
CPU
Intel® Sockel LGA 1851 für Intel® Core™ Ultra Prozessoren (Serie 2)
Chipsatz
Chipsatz
Intel® Z890
Speicher
DIMM-Steckplätze
4 × DDR5 nur
Speicherarchitektur
Dual-Channel
Intel® XMP 3.0
Unterstützt
OC-Frequenz
Siehe Memory QVL auf NZXT.com
Erweiterungssteckplätze
PCIe 5.0 ×16 (PCIEX16_1)
1
PCIe 4.0 ×16 (PCIEX16_2 & PCIEX16_3)
2
M.2 Socket (Key E)
1 (Typ 2230 Wi-Fi/BT PCIe Wi-Fi-Modul & Intel® CNVio/CNVio2)
Speicheranschlüsse
M.2_1
Typ 2280 (PCIe 5.0 ×4)
M.2_2
Typ 2280 (PCIe 4.0 ×4)
M.2_3
Typ 2280 (PCIe 4.0 ×4)
M.2_4
Typ 2280 (PCIe 4.0 ×4 & SATA 6 Gb/s)
SATA 6 Gb/s Ports
4
LAN
LAN
Realtek® 2.5G LAN
Wireless
Dual-Band Wi-Fi 6E
Unterstützt
Bluetooth
v5.3
Audio
Audio
Realtek® ALC1220 Audio-Codec
Rückseite I/O
Wi-Fi SMA Antennenanschlüsse
2
HDMI™ Port
1
Thunderbolt™ 4 Ports
2
USB 3.2 Gen 2×2 Type-C
1
USB 3.2 Gen 2
4
USB 3.2 Gen 1 Type-A
3
Clear CMOS Button
1
LAN (RJ45) Port
1
Audio-Buchsen
2
Optical S/PDIF Out
1
Interne I/O
24-Pin ATX Stromanschluss
1
8-Pin ATX 12V Stromanschluss
2
4-Pin CPU_FAN Anschluss
1
4-Pin AIO_PUMP Anschluss
1
4-Pin SYS_FAN Anschlüsse
3
NZXT RGB LED Anschluss
1
5V ARGB LED Anschlüsse
2
NZXT 8-Pin PWM Anschlüsse
2
USB 2.0 Header
2 (bis zu 4 Ports)
USB 3.2 Gen 1 Header
2 (bis zu 4 Ports)
USB 3.2 Gen 2×2 Front-Header
1
Frontpanel Audio Anschluss
1
Power Button
1
Reset Button
1
Post LEDs
1
Allgemein
Betriebssystem
Windows® 11/10 64-Bit
Formfaktor
ATX
Garantie
3 Jahre
Modellnummer
N7-Z89XT-W1 (Weiß) / N7-Z89XT-B1 (Schwarz)
UPC
810074846264 (Weiß) / 810074846271 (Schwarz)
EAN
5056547206202 (Weiß) / 5056547206219 (Schwarz)
